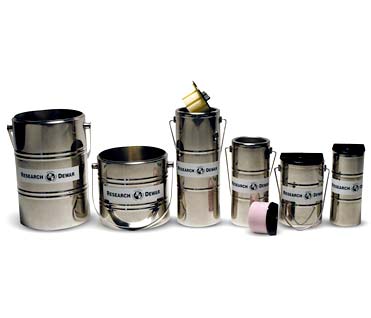

The MVE Research Dewars are developed specifically for easy and safe transport of liquid nitrogen and samples within facilities. These units are vacuum insulated for superior thermal performance and long hold times.
Features
• All stainless steel construction
• Optional insulated lid (cork & cover is not included)
• Wide mouth for easy access
• Convenient carrying handle (except .5L)
• Meets laboratory safety requirements that prohibit glass lined dewars
LIDS ARE SEPARATE ITEMS...please email for prices on lids. info@sementanks.com
Specifications
| RD-0.5L | RD-1.0L | RD-1.0L Wide | RD-2.0L | RD-3.0L | RD-6.0L | |
| Performance (Hold Time overrides NER specifications) | ||||||
| LN2 Capacity L est | 0.5 | 1.0 | 1.0 | 2.0 | 3.0 | 6.0 |
| Handle | no | yes | yes | yes | yes | yes |
| Unit Dimensions | ||||||
| Neck Opening in (mm) | 2.6 (66) | 3.9 (99) | 3.3 (84) | 3.9 (99) | 7.3 (185) | 7.3 (185) |
| Inner Diameter in. (mm) | 2.6 (66) | 3.9 (99) | 3.3 (84) | 3.9 (99) | 7.3 (185) | 7.3 (185) |
| Outside Diameter in. (mm) | 3.4 (86) | 4.8 (122) | 4.3 (109) | 4.8 (122) | 7.8 (198) | 7.8 (198) |
| Usable Internal Height in. (mm) | 8.0 (203) | 7.0 (178) | 9.1 (231) | 12.3 (312) | 7.5 (191) | 11.8 (300) |
| NER w/o Cover Days | 0.4 | 0.2 | 0.1 | 0.1 | 0.2 | 0.1 |
