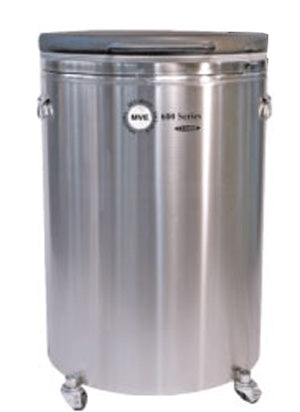

MVE 616 Basic (Freezer Only, No Plumbing/Controller)

Holds 16,900 Vials
Holds 63,000 1/2 cc straws

The MVE 616 LN₂ System is the perfect cryogenic storage solution when you require storage capacities of up to 16,900 2ml vials. This unit features a wide neck opening for easier access to samples, a low-profile design for less lift-over height and an optional vapor platform when vapor storage is needed. We offer a large variety of inventory systems and accessories, making this unit complete.

Features include:
• Liquid sample storage
• Wide neck opening
• Lowest liftover height
• Largest LN2 capacity
• Optional Battery Backup

 SPECIFICATIONS:



Performance:

• LN2 Capacity: 240L

Unit Dimensions:

• Neck Opening: 25.1”
• Usable Internal Height: 29.5”
• Inner Diameter: 25.13”
• Overall Height: 45.8”
• Door Width Requirement: 33.5” x 34.6”
• Weight Empty: 320 lbs.
• Weight Liquid Full: 748 lbs

Max. Storage Capacity:

• 1.2 & 2ml Vials: 16,900
• # of Racks for 100 Cell Boxes: 12
• # of Racks for 25 Cell Boxes: 4
• # of Stages per Rack: 13
• High Security Straws: 50,400 x 0.5ml straws
• # of Canisters (73mm): 60
• Goblets/Canister; Straws/Goblets: 5;168



 TWO Year Parts Warranty • Five Year Vacuum Warranty

*Basic unit without controller and auto fill option

Conforms to MDD 93/42/EEC, the Medical Device Directive for the EU. Freezer systems UL/C-UL Listed.

Additional discounts may be available...Contact us via email to discuss.

You can purchase the freezer on line and we will bill the shipping separately after purchase or email us your shipping address and we can create an invoice for you.
