Specifications
Description

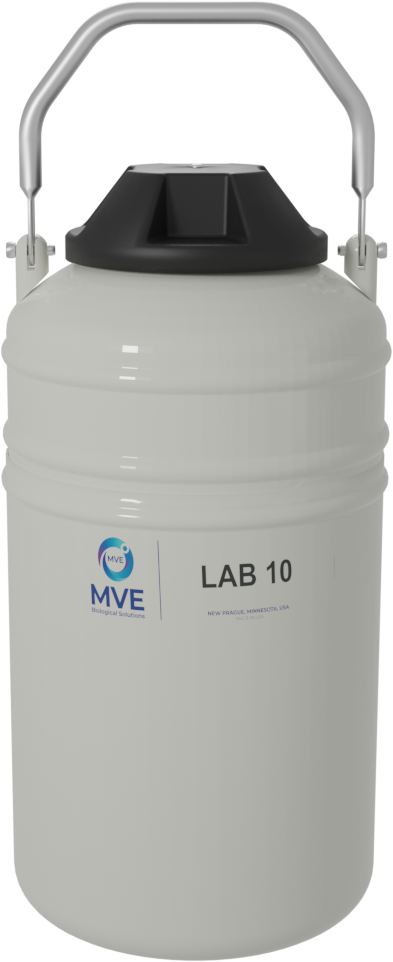

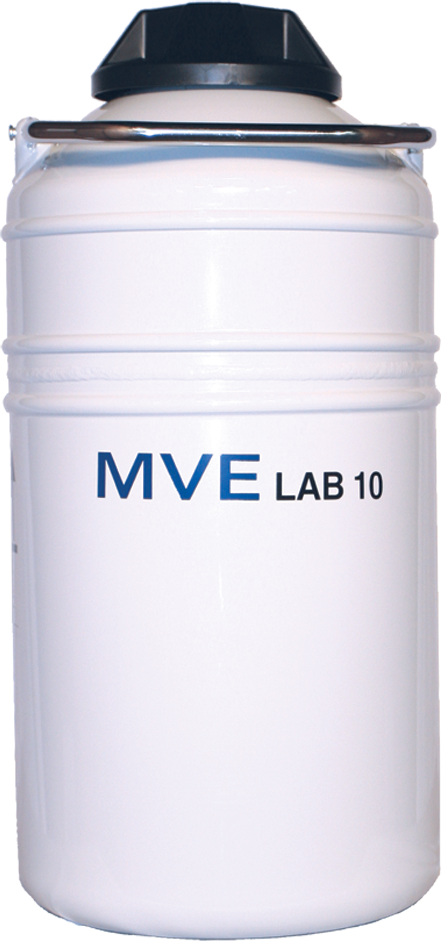

The Chart/MVE Lab Series cryogenic liquid dewars get their name from their acceptance in laboratories and medical facilities worldwide. These high-efficiency, super insulated dewars are the most convenient, economical way to store and dispense liquid nitrogen. Many lab units can be fitted with pouring spouts, pressurized dispensing devices or dipper to aid in the transfer of liquid nitrogen.
Specifications
| Performance (Hold Time overrides NER specifications) | |
| LN2 Capacity L est | 10.0 |
| Static Evaporation Rate L/day | 0.18 |
| Unit Dimensions | |
| Neck Opening in (mm) | 2.2 (56) |
| Over Height in (mm) | 21.5 (546) |
| Usable Height in (mm) | 13.5 (343) |
| Outside Diameter in (mm) | 10.3 (260) |
| Internal Diameter in (mm) | 8.3 (210) |
| Weight Empty lb. (kg) | 12.0 (5.4) |
| Weight Full liquid lb (kg) | 31.0 (14.0) |
* Static evaporation rate and static holding time are nominal. Actual rate and holding time will be affect by the nature of container use, atmospheric conditions, and manufacturing tolerances.
Features
- Designed for efficient storage of liquid nitrogen
- Low liquid nitrogen construction
- Convenient lightweight package
- Pail handle for easy transport and pouring of liquid nitrogen
- Five Year Manufacturers Warranty
