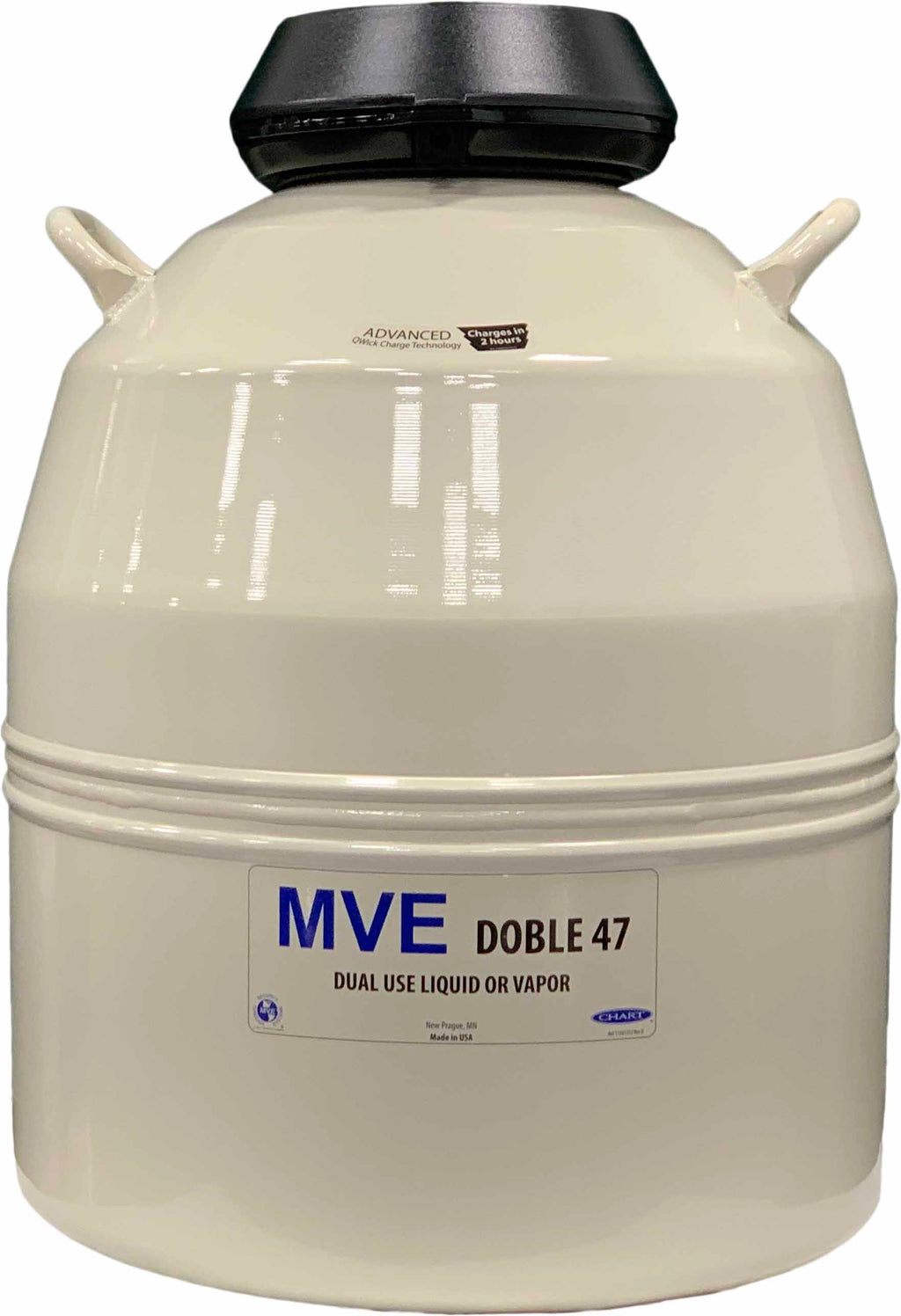

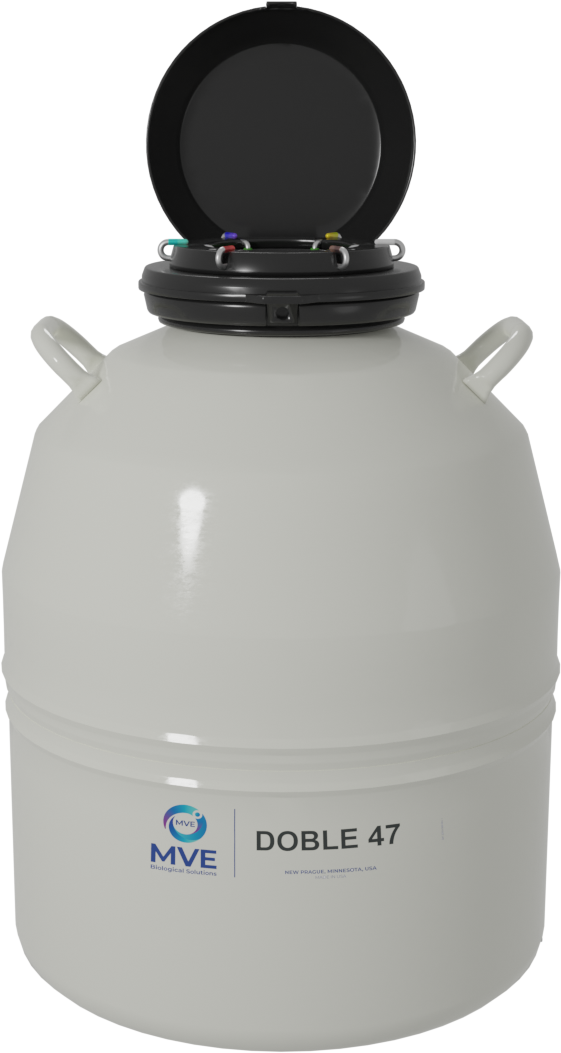

The Chart/MVE MVE Doble 47-6 cryogenic liquid dewar stores biological samples in liquid nitrogen, holds up to 4500 straws, features side handles and a round black lid, and includes a three-year vacuum warranty.

MVE Doble 47/11-6 - 4500 straws

Name: MVE Doble 47/11-6 - 4500 straws
Brand: Chart/MVE
SKU: 11498684
Price: 1950.0 USD
Availability: InStock

Read Reviews |

Fast Shipping

Call 724-263-6601
8 AM - 10 PM

Great Customer Service

Warranty

FACTORY WARRANTY

FAST SHIPPING

Shipping calculated at checkout.

To see MVE Product prices, click Add to Cart.

📦 In stock items ship within 72 hours. Exact shipping cost shown in your cart.

🚚 Factory Warranty

📍 Made in USA

⭐ 30 Years Experience

📞 Free Phone Consultation 8AM–10PM EST (724-263-6601)

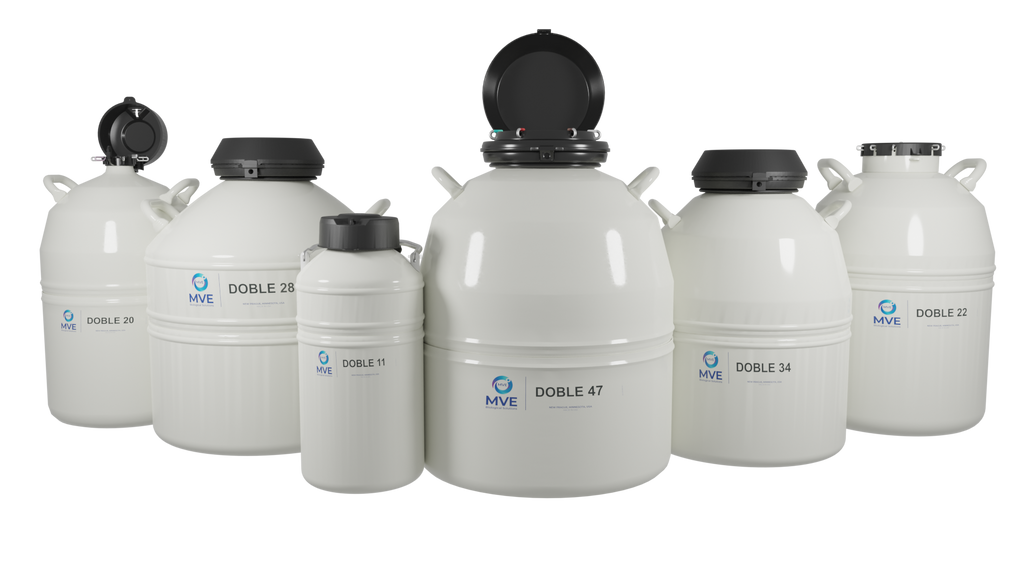

MVE Doble Series Cryogenic Dewars – Dual-Purpose Power for Semen & Embryo Transport

The innovative MVE Doble Series is the first cryogenic dewar designed for both vapor shipping and long-term liquid storage in one lightweight, durable unit.

Charge in under 2 hours with advanced QWick™ technology, ship safely in dry vapor mode (up to 21 days hold time), then simply fill with liquid nitrogen on arrival for extended storage—up to 116 days static hold with no need to transfer samples.

Liquid and vapor storage options
Low LN₂ consumption
High-capacity storage (660–4,500 straws depending on model)
Convenient, portable aluminum design with strong vacuum performance

Perfect for breeders, vets, and genetics operations: ship today, store tomorrow—maximum flexibility, minimum hassle.

Specifications

Maximum Storage Capacity
No of Canisters	6
No of 1/2 cc Straws (10/cane)	4,500
Vial Capacity	1320
Performance (Hold Time overrides NER specifications)
LN2 Capacity w/o Inventory L est	46.0
Vapor Capacity L	6.0
Static Evaporation Rate L/day	0.40
Working Duration (days for liquid)	74
Working Duration (days for vapor)	21
Unit Dimensions
Neck Opening in (mm)	5.0 (127)
Over Height in (mm)	26.5 (673)
Outside Diameter in (mm)	20.0 (508)
Canister Height in (mm)	11.0 (279)
Canister Diameter in (mm)	4.0 (101)
Weight Empty lb. (kg)	41.0 (18.5)
Weight Charged vapor lb (kg)	54.6 (24.7)
Weight Full liquid lb (kg)	117.0 (53.1)
Plastic Protective Shipping Container (part #)	14035731

* Static evaporation rate and static holding time are nominal. Actual rate and holding time will be affect by the nature of container use, atmospheric conditions, and manufacturing tolerances.
