MVE SC 20/20 Signature - 660 straws - HOLDS 20 WEEKS
FACTORY WARRANTY
FLAT FEE SHIPPING MAY APPLY
Pickup currently not available
Ask a Question
Specifications
FLAT FEE SHIPPING
FIVE YEAR VACUUM WARRANTY

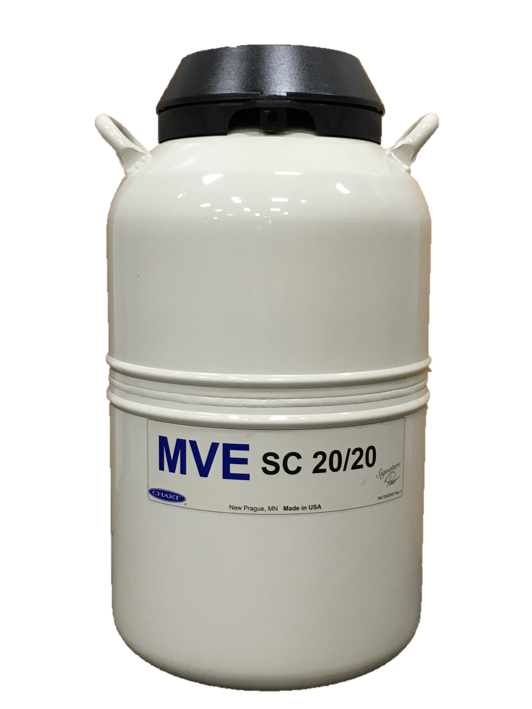

The MVE SC 20/20 Signature is designed for the user who has small capacity needs, but requires long-term storage and low liquid nitrogen consumption in a convenient lightweight package.
The MVE SC 20/20 Signature includes the Bend Don't Break durability feature. After 2 years in concept testing, the new SC 20/20 Signature includes a new top head shape which deforms in order to absorb G-force damage to the neck area. This increases the durability of the SC 20/20 Signature and will make the tank more robust to MINIMIZE the mishandling of transport damage. Although the bend concept allows for visible outside evidence that it has been tipped or dropped during transport, it will be more resilient and less likely to break minimizing the chances of product loss.
Liquid Nitrogen Filling Deflector - The neck ring on the SC 20/20 Signature includes a deflector that diverts liquid nitrogen away from the pump-out valve in case of liquid nitrogen overflow.
Specifications
Maximum Storage Capacity | |
No of Canisters | 6 |
No of 1/2 cc Straws (10/cane) | 660 |
Number of 1/2 cc Straws (1 Level Bulk) | 879 |
Performance (Hold Time overrides NER specifications) | |
LN2 Capacity w/o Inventory L est | 20.5 |
Static Evaporation Rate L/day | 0.085 |
Working Duration (Full Days) | 150 |
Unit Dimensions | |
Neck Opening in (mm) | 2.18 (55) |
Over Height in (mm) | 26.0 (660) |
Outside Diameter in (mm) | 14.5 (368) |
Canister Height in (mm) | 11.0 (279) |
Canister Diameter in (mm) | 1.65 (41.9) |
Weight Empty lb. (kg) | 22.5 (10.2) |
Weight Full liquid lb (kg) | 58.99 (26.7) |
* Static evaporation rate and static holding time are nominal. Actual rate and holding time will be affect by the nature of container use, atmospheric conditions, and manufacturing tolerances.
Features
- Ben'd Don't Break
- Designed specifically for farm use
- Liquid Nitrogen Filling Deflector
- Low liquid nitrogen consumption
- Convenient lightweight package
- Five Year Manufacturers Vacuum Warranty
This model is often on back order....Ship date is usually 3 - 4 weeks after the order is placed. Please make note of this and make sure this will work for you.
