Specifications

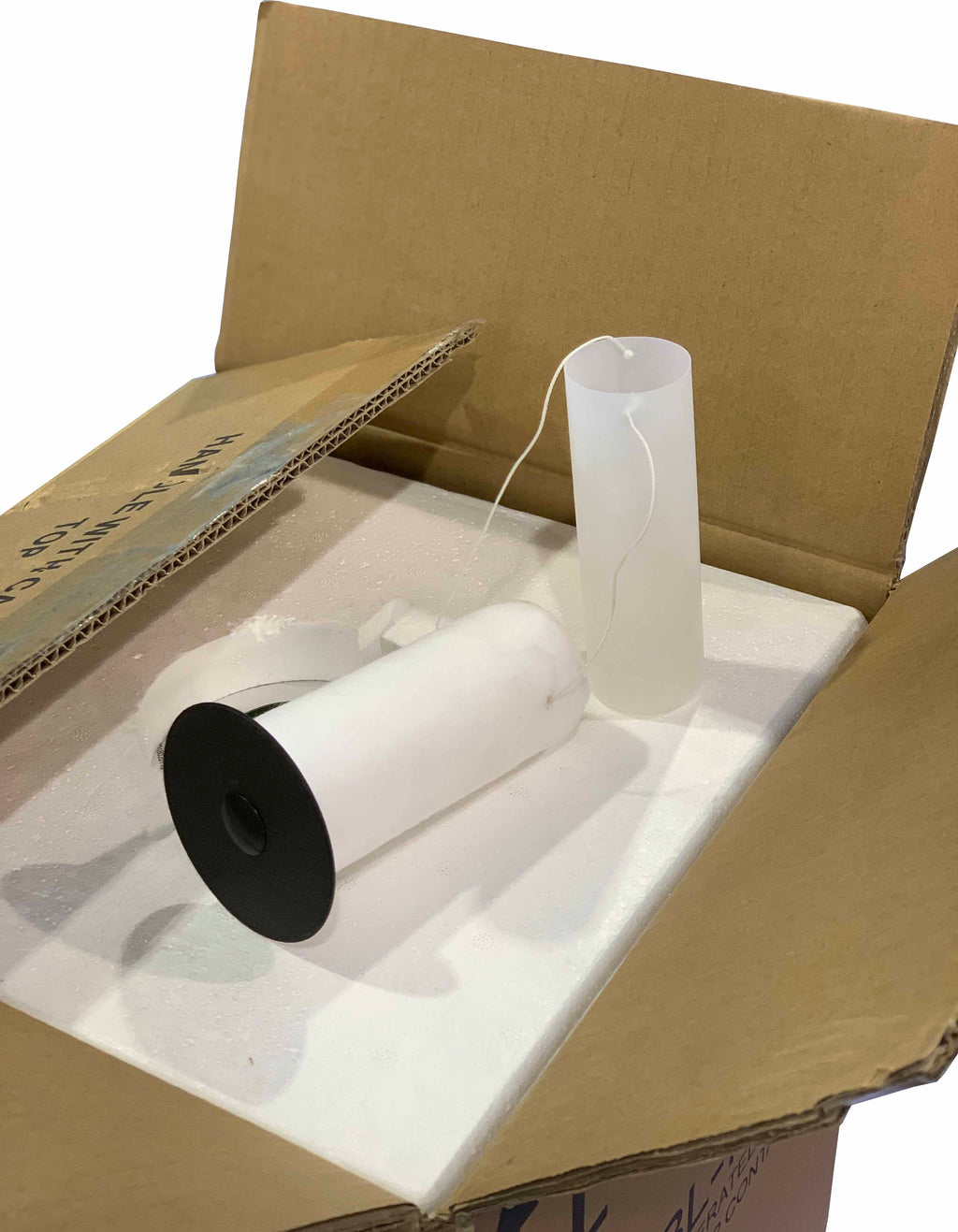

The new MVE CryoCube is a secure cryogenic shipping option for your biological samples. The CryoCube incorporates creative engineering and simplistic design to allow shipping in any orientation without sacrificing temperature or hold time. Improved welded construction provides the CryoCube with consistent, high quality design with every unit. The CryoCube allows for savings on dry ice, packaging, shipping cost, and disposal.
NOTE FROM FACTORY REGARDING CRYOCUBES:
“The Cryocube is designed as a one-way shipper. It is designed so that the user does not have to manage the return of shippers once they reach their destination. We do not recommend multiple shipments using the Cryocube or BL-7.”
Featuring Advanced QWick Charge Technology
| Maximum Storage Capacity | |
| No of Canisters | 1 |
| No. of 1/2cc Straws 1 Level Bulk | 88 |
| No of 1/4 cc Straws 1 Level Bulk | 182 |
| Performance (Hold Time overrides NER specifications) | |
| LN2 Capacity w/o Inventory L est | 1.5 |
| Static Holding Time Days | 5 |
| Unit Dimensions | |
| Neck Opening in (mm) | 1.40 (35.0) |
| Over Height in (mm) | 12.5 (317.5) |
| Over Width in (mm) | 12.0 (305) |
| Over Depth in (mm) | 12.0 (305) |
| Inner Canister Height in (mm) | 4.72 (120) |
| Inner Canister Diameter in (mm) | 1.25 (32) |
| Weight Empty lb. (kg) | 7.5 (3.41) |
| Weight Charged vapor lb (kg) | 10.2 (4.63) |
* Static evaporation rate and static holding time are nominal. Actual rate and holding time will be affect by the nature of container use, atmospheric conditions, and manufacturing tolerances.
Features
- Charges in 2 hours
- Operates as a dry shipper
- -150° C temperature
- 5-day holding time
- Safe shipping in any orientation
- Safe for international
shipping; IATA Dangerous Goods Regulations Exempt (Special Provision A152) - Welded construction for added integrity
- One Year Vacuum Warranty
